Annex 4 - Identification of control elements from security controls (ITSG-41)

From: Canadian Centre for Cyber Security



Alternate format: Annex 4 - Identification of control elements from security controls (ITSG-41) (PDF, 1.35 MB)

March 2013

Foreword

The ITSG-41 Annex 4 - Identification of Control Elements from Security Controls is an UNCLASSIFIED publication, issued under the authority of the Chief, Communications Security Establishment Canada (CSEC).

Suggestions for amendments should be forwarded through departmental communications security channels to your Client Services Representative at CSEC.

Requests for additional copies or changes in distribution should be directed to your Client Services Representative at CSEC.

For further information, please contact CSEC’s IT Security Client Services area by e-mail at itsclientservices@cse-cst.gc.ca, or call 613-991-7654.

Effective Date

This publication takes effect on 2013-03-14.

Originally signed by
Toni Moffa
Deputy Chief, IT Security

Table of contents

List of Figures

List of Tables

List of abbreviations and acronyms

CSEC
Communications Security Establishment Canada
IT
Information Technology
ITSG
Information Technology Security Guidance
PA
Protected A
PB
Protected B
SDLC
System Development Life Cycle
WLAN
Wireless Local Area Network
ISSIP
Information System Security Implementation Process

1 Introduction

1.1 Purpose

This document describes the process used to identify technology-related and procedural-related control elements from the appropriate security controls selected during the ITSG-33 IT Security Risk Management: A Lifecycle Approach - Overview (ITSG-33) [Reference 1]Footnote 1 requirements analysis phase to:

  1. Address the Wireless Local Area Network (WLAN) services deployment’s business needs for security; and
  2. Comply with the departmentally mandated security controls applicable to the WLAN services deployment.

Examples of how this process is executed is provided using the Protected A/Low Integrity/Low Availability and Protected B/Medium Integrity/Medium Availability security control profiles defined in the ITSG-33 (Annex 4 - Profile 2 (Protected A/Low Integrity/Low Availability) and Annex 4 - Profile 1 (Protected B/Medium Integrity/Medium Availability)).

1.2 Target Audience

This document is intended for information system/security practitioners and those who are responsible for Information Technology (IT) security risk management activities associated with the design and implementation of WLANs.

1.3 Publication Taxonomy

This document is part of a series of documents that together form the ITSG-41 publication suite. The other documents in the series are listed below:

  • ITSG-41 - Security Requirements for Wireless Local Area Networks [Reference 2]
  • ITSG-41 Annex 1 - Government Hot Spot High-Level Design Guidance [Reference 3]
  • ITSG-41 Annex 2 - Wireless User to Wired Network Connection High-Level Design Guidance [Reference 4]
  • ITSG-41 Annex 3 - Wired Network to Wired Network via Wireless Bridge High-Level Design Guidance [Reference 5]

2 Control Elements

Control Elements are identified from security controls selected from the ITSG-33 (Annex 3 – Security Control Catalogue). The ITSG-33 (Annex 2 - Information System Security Risk Management Activities) also describes security activities to be performed during an IT project’s System Development Life Cycle (SDLC) (illustrated in Figure 1 - ITSG-33 System Development Life Cycle) for designing and implementing security in information systems.

Security activities during a requirements analysis phase are performed to select an approved set of security controls to:

  1. Address the WLAN services deployment’s business needs for security; and
  2. Comply with the departmentally mandated security controls applicable to the WLAN services deployment.

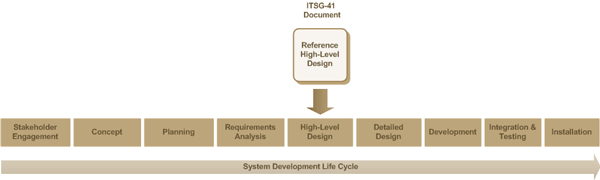

Figure 1 - ITSG-33 System Development Life Cycle

Figure 1 - ITSG-33 System Development Life Cycle

The approved set of security controls for the for the WLAN services deployment will include security controls from the management, technical and operational classes as illustrated in Figure   2 - Security Controls and Control Elements (Figure 2):

  1. Management Class includes security controls that are not implemented within an information system and focus on the management of IT security;
  2. Technical Class includes security controls that are typically implemented within an information system using hardware, software, or firmware components; and
  3. Operational Class includes information system security controls that are typically implemented and executed by people (i.e., adherence to policies or execution of procedures).

Technology-related control elements are determined by first identifying all the management, technical or operations security controls and then grouping them into operating environment and information system security controls. Then the information system security controls are disseminated into technology-related and procedural-related control elements as illustrated in Figure 2:

  1. Information system security controls can be either procedural-related and/or technology-related and the responsibility for their implementation falls under the information system owner. They are implemented within the information system using hardware or software components and include any manual procedures associated with the security functionality of those components (e.g., auditing and logging); and
  2. Operating environment security controls are predominately management or operational in nature and are implemented through programs, policies or procedures at the departmental level. In some cases they may be implemented through physical infrastructure or through technical means (e.g., physical security) but not within an information system.

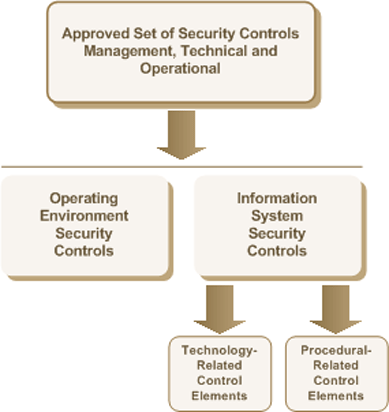

Figure 2 - Security Controls and Control Elements

Figure 2 - Security Controls and Control Elements

Each security control definition consists of:

  1. A "control” section which specifies one or more concise statements of the specific security capability needed to protect an aspect of an information system. Each statement in the control section is assigned a separate alphabetic designator (i.e., (A), (B), etc.) and must be complied with in order to implement the security control; and
  2. An optional “control enhancements” section which specifies through one or more concise statements, additional security capabilities used to increase the strength of a security control. Each control enhancement is assigned a separate numeric designator (i.e., (1), (2), etc.).

Each concise statement within a “control” or “control enhancement” section defines a separate “control element”. Information system security controls need to be disseminated into technology-related and procedural-related control elements to determine how the individual elements that comprise each security control will be addressed within the information system.

Technology-related control elements are identified from information system security controls and are to be implemented using technology (e.g., firewall). Procedural-related control elements are identified from information system security controls and are implemented using policies or manual procedures (e.g., human review of firewall logs).

2.1 Technology-Related Control Element Selection

This section describes the detailed steps illustrated in Figure   3 - Control Elements Identification required to select the technology-related control elements from an approved set of security controls determined during the Information System Security Implementation Process (ISSIP) requirements analysis phase.

  • Step 1:   Once the approved set of security controls are defined, Table 1 - Operating Environment and Information System Security Controls (Table 1) is used to identify which are operating environment and which are information system security controls; and
  • Step 2:   Table 2 - Technology-Related Control Elements (Table 2) and Table 3 - Procedural-Related Control Elements (Table 3) are used to identify the technology-related control elements and procedural-related control elements from the information system security controls identified in Step 1.

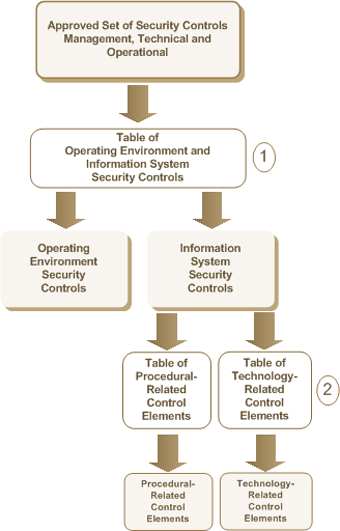

Figure 3 - Control Elements Identification

Figure 3 - Control Elements Identification

Table 1 - Operating Environment and Information System Security Controls

Security Control Type Security Control Number
Operating Environment AT-1, AT-2, AT-3, AT-4, AT-5, AU-13, CA-1, CA-2, CA-3, CA-5, CA-6, CA-7, CM-2, CM-3, CM-4, CM-9, CP-2, CP-3, CP-4, CP-6, CP-7, CP-8, IR-1, IR-2, IR-3, IR-4, IR-5, IR-6, IR-7, IR-8, MA-2, MA-3, MA-5, MA-6, MP-2, MP-3, MP-5, PE-1, PE-2, PE-3, PE-4, PE-5, PE-6, PE-7, PE-8, PE-9, PE-10, PE-11, PE-12, PE-13, PE-14, PE-15, PE-16, PE-17, PE-18, PE-19, PL-1, PL-2, PL-4, PL-5, PL-6, PS-1, PS-2, PS-3, PS-4, PS-5, PS-6, PS-7, PS-8, RA-1, RA-2, RA-3, RA-5, SA-1, SA-2, SA-3, SA-4, SA-5, SA-6, SA-7, SA-8, SA-9, SA-10, SA-11, SA-12, SA-13, SA-14, SI-5, SI-12
Information System AC-1, AC-2, AC-3, AC-4, AC-5, AC-6, AC-7, AC-8, AC-9. AC-10, AC-11, AC-14, AC-16, AC-17, AC-18, AC-19, AC-20, AC-21, AC-22, AU-1, AU-2, AU-3, AU-4, AU-5, AU-6, AU-7, AU-8, AU-9, AU-10, AU-11, AU-12, AU-14, CM-1, CM-5, CM-6, CM-7, CM-8, CP-1, CP-9, CP-10, IA-1, IA-2, IA-3, IA-4, IA-5, IA-6, IA-7, IA-8, MA-1, MA-4, MP-1, MP-4, MP-6, SC-1, SC-2, SC-3, SC-4, SC-5, SC-6, SC-7, SC-8, SC-9, SC-10, SC-11, SC-12, SC-13, SC-14, SC-15, SC-16, SC-17, SC-18, SC-19, SC-20, SC-21, SC-22, SC-23, SC-24, SC-25, SC-26, SC-27, SC-28, SC-29, SC-30, SC-31, SC-32, SC-33, SC-34, SC-100, SC-101, SI-1, SI-2, SI-3, SI-4, SI-6, SI-7, SI-8, SI-9, SI-10, SI-11, SI-13

Table 2 - Technology-Related Control Elements

Security Control Type Security Control Number
AC-2 Account Management AC-2-1, AC-2-2, AC-2-3, AC-2-4, AC-2-5, AC-2-6, AC-2-7
AC-3 Access Enforcement AC-3-A, AC-3-2, AC-3-3, AC-3-4, AC-3-5, AC-3-6
AC-4 Information Flow Enforcement AC-4-A, AC-4-1, AC-4-2, AC-4-3, AC-4-4, AC-4-5, AC-4-6, AC-4-7, AC-4-8, AC-4-9, AC-4-10, AC-4-11, AC-4-12, AC-4-13, AC-4-14, AC-4-15, AC-4-17
AC-5 Separation of Duties AC-5-C
AC-6 Least Privilege AC-6-4
AC-7 Unsuccessful Login Attempts AC-7-A, AC-7-B, AC-7-1, AC-7-2
AC-8 System Use Notification AC-8-A, AC-8-B, AC-8-C
AC-9 Previous Logon (Access) Notification AC-9-A, AC-9-1, AC-9-2, AC-9-3
AC-10 Concurrent Session Control AC-10-A
AC-11 Session Lock AC-11-A, AC-11-B, AC-11-1
AC-16 Security Attributes AC-16-A, AC-16-1, AC-16-2, AC-16-3, AC-16-4, AC-16-5
AC-17 Remote Access AC-17-C, AC-17-D, AC-17-E, AC-17-1, AC-17-2, AC-17-3, AC-17-5, C-17-7, AC-17-8, AC-17-100
AC-18 Wireless Access AC-18-B, AC-18-C, AC-18-D, AC-18-1, AC-18-2, AC-18-4, AC-18-5
AC-19 Access Control for Mobile Devices AC-19-B, AC-19-C, AC-19-D, AC-19-E
AC-21 User-Based Collaboration and Information Sharing AC-21-B, AC-21-1
AU-3 Content of Audit Records AU-3-A, AU-3-1, AU-3-2
AU-4 Audit Storage Capacity AU-4-A
AU-5 Response to Audit Processing Failures AU-5-A, AU-5-B, AU-5-1, AU-5-2, AU-5-3, AU-5-4
AU-6 Audit Review, Analysis, and Reporting AU-6-3, AU-6-4, AU-6-5
AU-7 Audit Reduction and Report Generation AU-7-A, AU-7-1
AU-8 Time Stamps AU-8-A, AU-8-1
AU-9 Protection of Audit Information AU-9-A, AU-9-1, AU-9-2, AU-9-3, AU-9-4
AU-10 Non-Repudiation AU-10-A, AU-10-1, AU-10-2, AU-10-3, AU-10-4, AU-10-5
AU-12 Audit Generation AU-12-A, AU-12-B, AU-12-C, AU-12-1, AU-12-2
AU-14 Session Audit AU-14-A, AU-14-B, AU-14-1
CM-5 Access Restrictions for Change CM-5-A, CM-5-1, CM-5-3, CM-5-6, CM-5-7
CM-6 Configuration Settings CM-6-B, CM-6-1, CM-6-2, CM-6-3
CM-7 Least Functionality CM-7-A, CM-7-2
CM-8 Information System Component Inventory CM-8-2, CM-8-3
CP-9 Information System Backup CP-9-A, CP-9-B, CP-9-C, CP-9-6
CP-10 Information System Recovery and Reconstitution CP-10-2, CP-10-5
IA-2 Identification and Authentication (Organizational Users) IA-2-A, IA-2-1, IA-2-2, IA-2-3, IA-2-4, IA-2-5, IA-2-6, IA-2-7, IA-2-8, IA-2-9, IA-2-100
IA-3 Device Identification and Authentication IA-3-A, IA-3-1, IA-3-2
IA-4 Identifier Management IA-4-5
IA-5 Authenticator Management IA-5-1, IA-5-2
IA-6 Authenticator Feedback IA-6-A
IA-7 Cryptographic Module Authentication IA-7-A
IA-8 Identification and Authentication (Non-Organizational Users) IA-8-A
MA-4 Non-Local Maintenance MA-4-C, MA-4-4, MA-4-6, MA-4-7
SC-2 Application Partitioning SC-2-A, SC-2-1
SC-3 Security Function Isolation SC-3-A, SC-3-1, SC-3-2, SC-3-3, SC-3-4, SC-3-5
SC-4 Information in Shared Resources SC-4-A, SC-4-1
SC-5 Denial of Service Protection SC-5-A, SC-5-1, SC-5-2
SC-6 Resource Priority SC-6-A
SC-7 Boundary Protection SC-7-A, SC-7-B, SC-7-1, SC-7-2, SC-7-3, SC-7-4, SC-7-5, SC-7-6, SC-7-7, SC-7-8, SC-7-9, SC-7-10, SC-7-11, SC-7-12, SC-7-13, SC-7-15, SC-7-16, SC-7-17, SC-7-18
SC-8 Transmission Integrity SC-8-A, SC-8-1, SC-8-2
SC-9 Transmission Confidentiality SC-9-A, SC-9-1, SC-9-2, SC-9-100
SC-10 Network Disconnect SC-10-A
SC-11 Trusted Path SC-11-A
SC-12 Cryptographic Key Establishment and Management SC-12-A, SC-12-2, SC-12-3, SC-12-4, SC12-5
SC-13 Use of Cryptography SC-13-A, SC-13-1, SC-13-2, SC-13-3, SC-13-4, SC-13-100, SC-13-101, SC-13-102, SC-13-103, SC-13-104
SC-14 Public Access Protections SC-14-A
SC-15 Collaborative Computing Devices SC-15-A, SC-15-B, SC-15-1, SC-15-2
SC-16 Transmission of Security Attributes SC-16-A, SC-16-1
SC-18 Mobile Code SC-18-C, SC-18-1, SC-18-3, SC-18-4
SC-20 Secure Name/Address Resolution Service (Authoritative Source) SC-20-A, SC-20-1
SC-21 Secure Name/Address Resolution Service (Recursive or Caching Resolver) SC-21-A, SC-21-1
SC-22 Architecture and Provisioning for Name/Address Resolution Service SC-22-A
SC-23 Session Authenticity SC-23-A, SC-23-1, SC-23-2, SC-23-3, SC-23-4
SC-24 Fail in Known State SC-24-A
SC-25 Thin Nodes SC-25-A
SC-26 Honeypots SC-26-A, SC-26-1
SC-27 Operating System-Independent Applications SC-27-A
SC-28 Protection of Information at Rest SC-28-A, SC-28-1
SC-29 Heterogeneity SC-29-A
SC-30 Virtualization Techniques SC-30-A, SC-30-1, SC-30-2
SC-32 Information System Partitioning SC-32-A
SC-33 Transmission Preparation Integrity SC-33-A
SC-34 Non-Modifiable Executable Programs SC-34-A, SC-34-B, SC-34-1
SC-100 Source Authentication SC-100-A, SC-100-1, SC-100-2, SC-100-3
SC-101 Unclassified Telecommunications Systems in Secure Facilities SC-101-A, SC-101-B, SC-101-C, SC-101-D
SI-2 Flaw Remediation SI-2-1, SI-2-2, SI-2-4
SI-3 Malicious Code Protection SI-3-A, SI-3-C, SI-3-1, SI-3-2, SI-3-3, SI-3-4
SI-4 Information System Monitoring SI-4-A, SI-4-C, SI-4-1, SI-4-2, SI-4-3, SI-4-4, SI-4-5, SI-4-6, SI-4-7, SI-4-8, SI-4-10, SI-4-11, SI-4-12, SI-4-13, SI-4-14, SI-4-15
SI-6 Security Functionality Verification SI-6-A, SI-6-1 SI-6-2
SI-7 Software and Information Integrity SI-7-A, SI-7-2, SI-7-3
SI-8 Spam Protection SI-8-A, SI-8-1, SI-8-2
SI-9 Information Input Restrictions SI-9-A
SI-10 Information Input Validation SI-10-A
SI-11 Error Handling SI-11-A, SI-11-B, SI-11-C

Table 3 - Procedural-Related Control Elements

Security Control Type Security Control Number
AC-2 Account Management AC-2-1, AC-2-2, AC-2-3, AC-2-4, AC-2-5, AC-2-6, AC-2-7
AC-3 Access Enforcement AC-3-A, AC-3-2, AC-3-3, AC-3-4, AC-3-5, AC-3-6
AC-4 Information Flow Enforcement AC-4-A, AC-4-1, AC-4-2, AC-4-3, AC-4-4, AC-4-5, AC-4-6, AC-4-7, AC-4-8, AC-4-9, AC-4-10, AC-4-11, AC-4-12, AC-4-13, AC-4-14, AC-4-15, AC-4-17
AC-5 Separation of Duties AC-5-C
AC-6 Least Privilege AC-6-4
AC-7 Unsuccessful Login Attempts AC-7-A, AC-7-B, AC-7-1, AC-7-2
AC-8 System Use Notification AC-8-A, AC-8-B, AC-8-C
AC-9 Previous Logon (Access) Notification AC-9-A, AC-9-1, AC-9-2, AC-9-3
AC-10 Concurrent Session Control AC-10-A
AC-11 Session Lock AC-11-A, AC-11-B, AC-11-1
AC-16 Security Attributes AC-16-A, AC-16-1, AC-16-2, AC-16-3, AC-16-4, AC-16-5
AC-17 Remote Access AC-17-C, AC-17-D, AC-17-E, AC-17-1, AC-17-2, AC-17-3, AC-17-5, C-17-7, AC-17-8, AC-17-100
AC-18 Wireless Access AC-18-B, AC-18-C, AC-18-D, AC-18-1, AC-18-2, AC-18-4, AC-18-5
AC-19 Access Control for Mobile Devices AC-19-B, AC-19-C, AC-19-D, AC-19-E
AC-21 User-Based Collaboration and Information Sharing AC-21-B, AC-21-1
AU-3 Content of Audit Records AU-3-A, AU-3-1, AU-3-2
AU-4 Audit Storage Capacity AU-4-A
AU-5 Response to Audit Processing Failures AU-5-A, AU-5-B, AU-5-1, AU-5-2, AU-5-3, AU-5-4
AU-6 Audit Review, Analysis, and Reporting AU-6-3, AU-6-4, AU-6-5
AU-7 Audit Reduction and Report Generation AU-7-A, AU-7-1
AU-8 Time Stamps AU-8-A, AU-8-1
AU-9 Protection of Audit Information AU-9-A, AU-9-1, AU-9-2, AU-9-3, AU-9-4
AU-10 Non-Repudiation AU-10-A, AU-10-1, AU-10-2, AU-10-3, AU-10-4, AU-10-5
AU-12 Audit Generation AU-12-A, AU-12-B, AU-12-C, AU-12-1, AU-12-2
AU-14 Session Audit AU-14-A, AU-14-B, AU-14-1
CM-5 Access Restrictions for Change CM-5-A, CM-5-1, CM-5-3, CM-5-6, CM-5-7
CM-6 Configuration Settings CM-6-B, CM-6-1, CM-6-2, CM-6-3
CM-7 Least Functionality CM-7-A, CM-7-2
CM-8 Information System Component Inventory CM-8-2, CM-8-3
CP-9 Information System Backup CP-9-A, CP-9-B, CP-9-C, CP-9-6
CP-10 Information System Recovery and Reconstitution CP-10-2, CP-10-5
IA-2 Identification and Authentication (Organizational Users) IA-2-A, IA-2-1, IA-2-2, IA-2-3, IA-2-4, IA-2-5, IA-2-6, IA-2-7, IA-2-8, IA-2-9, IA-2-100
IA-3 Device Identification and Authentication IA-3-A, IA-3-1, IA-3-2
IA-4 Identifier Management IA-4-5
IA-5 Authenticator Management IA-5-1, IA-5-2
IA-6 Authenticator Feedback IA-6-A
IA-7 Cryptographic Module Authentication IA-7-A
IA-8 Identification and Authentication (Non-Organizational Users) IA-8-A
MA-4 Non-Local Maintenance MA-4-C, MA-4-4, MA-4-6, MA-4-7
SC-2 Application Partitioning SC-2-A, SC-2-1
SC-3 Security Function Isolation SC-3-A, SC-3-1, SC-3-2, SC-3-3, SC-3-4, SC-3-5
SC-4 Information in Shared Resources SC-4-A, SC-4-1
SC-5 Denial of Service Protection SC-5-A, SC-5-1, SC-5-2
SC-6 Resource Priority SC-6-A
SC-7 Boundary Protection SC-7-A, SC-7-B, SC-7-1, SC-7-2, SC-7-3, SC-7-4, SC-7-5, SC-7-6, SC-7-7, SC-7-8, SC-7-9, SC-7-10, SC-7-11, SC-7-12, SC-7-13, SC-7-15, SC-7-16, SC-7-17, SC-7-18
SC-8 Transmission Integrity SC-8-A, SC-8-1, SC-8-2
SC-9 Transmission Confidentiality SC-9-A, SC-9-1, SC-9-2, SC-9-100
SC-10 Network Disconnect SC-10-A
SC-11 Trusted Path SC-11-A
SC-12 Cryptographic Key Establishment and Management SC-12-A, SC-12-2, SC-12-3, SC-12-4, SC12-5
SC-13 Use of Cryptography SC-13-A, SC-13-1, SC-13-2, SC-13-3, SC-13-4, SC-13-100, SC-13-101, SC-13-102, SC-13-103, SC-13-104
SC-14 Public Access Protections SC-14-A
SC-15 Collaborative Computing Devices SC-15-A, SC-15-B, SC-15-1, SC-15-2
SC-16 Transmission of Security Attributes SC-16-A, SC-16-1
SC-18 Mobile Code SC-18-C, SC-18-1, SC-18-3, SC-18-4
SC-20 Secure Name/Address Resolution Service (Authoritative Source) SC-20-A, SC-20-1
SC-21 Secure Name/Address Resolution Service (Recursive or Caching Resolver) SC-21-A, SC-21-1
SC-22 Architecture and Provisioning for Name/Address Resolution Service SC-22-A
SC-23 Session Authenticity SC-23-A, SC-23-1, SC-23-2, SC-23-3, SC-23-4
SC-24 Fail in Known State SC-24-A
SC-25 Thin Nodes SC-25-A
SC-26 Honeypots SC-26-A, SC-26-1
SC-27 Operating System-Independent Applications SC-27-A
SC-28 Protection of Information at Rest SC-28-A, SC-28-1
SC-29 Heterogeneity SC-29-A
SC-30 Virtualization Techniques SC-30-A, SC-30-1, SC-30-2
SC-32 Information System Partitioning SC-32-A
SC-33 Transmission Preparation Integrity SC-33-A
SC-34 Non-Modifiable Executable Programs SC-34-A, SC-34-B, SC-34-1
SC-100 Source Authentication SC-100-A, SC-100-1, SC-100-2, SC-100-3
SC-101 Unclassified Telecommunications Systems in Secure Facilities SC-101-A, SC-101-B, SC-101-C, SC-101-D
SI-2 Flaw Remediation SI-2-1, SI-2-2, SI-2-4
SI-3 Malicious Code Protection SI-3-A, SI-3-C, SI-3-1, SI-3-2, SI-3-3, SI-3-4
SI-4 Information System Monitoring SI-4-A, SI-4-C, SI-4-1, SI-4-2, SI-4-3, SI-4-4, SI-4-5, SI-4-6, SI-4-7, SI-4-8, SI-4-10, SI-4-11, SI-4-12, SI-4-13, SI-4-14, SI-4-15
SI-6 Security Functionality Verification SI-6-A, SI-6-1 SI-6-2
SI-7 Software and Information Integrity SI-7-A, SI-7-2, SI-7-3
SI-8 Spam Protection SI-8-A, SI-8-1, SI-8-2
SI-9 Information Input Restrictions SI-9-A
SI-10 Information Input Validation SI-10-A
SI-11 Error Handling SI-11-A, SI-11-B, SI-11-C

2.2 Example Protected A/Low Integrity/Low Availability

This section uses the Protected A/Low Integrity/Low Availability security control profile defined within the ITSG-33 (Annex 4 - Profile 2)as the approved set of security controls within the technology-related control elements selection process defined in Section 2.1 Technology-Related Control Element Selection. The results of the process are provided.

  • Step 1: Table 1 is used to identify which security controls within the Protected A/Low Integrity/Low Availability security control profile are operating environment and which are information system security controls. The results are listed in Table 4 - PA/L/L Operating Environment and Information System Security Controls (Table 4); and
  • Step 2: Table 2 and Table 3 are used to identify the technology-related and procedural-related control elements from the information system security controls identified in Table 4. The results are listed in Table 5 - PA/L/L Technology-Related Control Elements and Table 6 - PA/L/L Procedural-Related Control Elements respectively.

Table 4 - PA/L/L Operating Environment and Information System Security Controls

Security Control Type Security Control Number
Operating Environment AT-1, AT-2, AT-3, AT-4, CA-1, CA-2, CA-3, CA-5, CA-6, CA-7, CM-2, CM-3, CM-4, CM-9, CP-2, CP-3, IR-1, IR-2, IR-4, IR-6, IR-7, IR-8, MA-2, MA-5, MP-2, MP-3, PE-1, PE-2, PE-3, PE-6, PE-7, PE-8, PE-10, PE-11, PE-12, PE-13, PE-14, PE-15, PE-16, PE-18, PL-1, PL-2, PL-4, PL-5, PL-6, PS-1, PS-2, PS-3, PS-4, PS-5, PS-6, PS-7, PS-8, RA-1, RA-2, RA-3, RA-5, SA-1, SA-2, SA-3, SA-4, SA-5, SA-6, SA-7, SA-8, SA-9, SA-12, SI-5, SI-12
Information System AC-1, AC-2, AC-3, AC-4, AC-5, AC-6, AC-7, AC-8, AC-9. AC-11, AC-14, AC-16, AC-17, AC-18, AC-19, AC-20, AC-21, AC-22, AU-1, AU-2, AU-3, AU-4, AU-6, AU-8, AU-9, AU-11, AU-12, CM-1, CM-5, CM-6, CM-7, CM-8, CP-1, CP-9, CP-10, IA-1, IA-2, IA-3, IA-4, IA-5, IA-6, IA-7, IA-8, MA-1, MA-4, MP-1, MP-6, SC-1, SC-2, SC-7, SC-10, SC-12, SC-13, SC-14, SC-15, SC-17, SC-18, SC-19, SC-22, SC-23, SC-24, SC-28, SI-1, SI-2, SI-3, SI-4, SI-8, SI-10

Table 5 - PA/L/L Technology-Related Control Elements

Security Control Type Security Control Number
AC-2 Account Management AC-2-1, AC-2-2, AC-2-3, AC-2-4, AC-2-5
AC-3 Access Enforcement AC-3-A, AC-3-4
AC-4 Information Flow Enforcement AC-4-A
AC-5 Separation of Duties AC-5-C
AC-6 Least Privilege NA
AC-7 Unsuccessful Login Attempts AC-7-A, AC-7-B
AC-8 System Use Notification AC-8-A, AC-8-B, AC-8-C
AC-9 Previous Logon (Access) Notification AC-9-A, AC-9-1, AC-9-2, AC-9-3
AC-10 Concurrent Session Control NA
AC-11 Session Lock AC-11-A, AC-11-B, AC-11-1
AC-16 Security Attributes AC-16-A, AC-16-2, AC-16-4, AC-16-5
AC-17 Remote Access AC-17-C, AC-17-D, AC-17-E, AC-17-1, AC-17-2, AC-17-3, AC-17-5, C-17-7, AC-17-8, AC-17-100
AC-18 Wireless Access AC-18-B, AC-18-C, AC-18-D, AC-18-1, AC-18-2, AC-18-4
AC-19 Access Control for Mobile Devices AC-19-B, AC-19-C, AC-19-D, AC-19-E
AC-21 User-Based Collaboration and Information Sharing AC-21-B
AU-3 Content of Audit Records AU-3-A, AU-3-1
AU-4 Audit Storage Capacity AU-4-A
AU-5 Response to Audit Processing Failures AU-5-A, AU-5-B, AU-5-1
AU-6 Audit Review, Analysis, and Reporting NA
AU-7 Audit Reduction and Report Generation NA
AU-8 Time Stamps AU-8-A, AU-8-1
AU-9 Protection of Audit Information AU-9-A, AU-9-4
AU-10 Non-Repudiation NA
AU-12 Audit Generation AU-12-A, AU-12-B, AU-12-C
AU-14 Session Audit NA
CM-5 Access Restrictions for Change CM-5-A, CM-5-1, CM-5-6
CM-6 Configuration Settings CM-6-B, CM-6-3
CM-7 Least Functionality CM-7-A
CM-8 Information System Component Inventory CM-8-2, CM-8-3
CP-9 Information System Backup CP-9-A, CP-9-B, CP-9-C
CP-10 Information System Recovery and Reconstitution NA
IA-2 Identification and Authentication (Organizational Users) IA-2-A, IA-2-8, IA-2-9, IA-2-100
IA-3 Device Identification and Authentication IA-3-A, IA-3-1
IA-4 Identifier Management NA
IA-5 Authenticator Management IA-5-1, IA-5-2
IA-6 Authenticator Feedback IA-6-A
IA-7 Cryptographic Module Authentication IA-7-A
IA-8 Identification and Authentication (Non-Organizational Users) IA-8-A
MA-4 Non-Local Maintenance MA-4-C
SC-2 Application Partitioning SC-2-A, SC-2-1
SC-3 Security Function Isolation NA
SC-4 Information in Shared Resources NA
SC-5 Denial of Service Protection NA
SC-6 Resource Priority NA
SC-7 Boundary Protection SC-7-A, SC-7-B, SC-7-1, SC-7-2, SC-7-3, SC-7-4, SC-7-5, SC-7-6, SC-7-7, SC-7-8, SC-7-9, SC-7-11, SC-7-12, SC-7-13, SC-7-18
SC-8 Transmission Integrity NA
SC-9 Transmission Confidentiality NA
SC-10 Network Disconnect SC-10-A
SC-11 Trusted Path NA
SC-12 Cryptographic Key Establishment and Management SC-12-A
SC-13 Use of Cryptography SC-13-A, SC-13-4
SC-14 Public Access Protections SC-14-A
SC-15 Collaborative Computing Devices SC-15-A, SC-15-B, SC-15-2
SC-16 Transmission of Security Attributes NA
SC-18 Mobile Code SC-18-C, SC-18-1, SC-18-3, SC-18-4
SC-20 Secure Name/Address Resolution Service (Authoritative Source) NA
SC-21 Secure Name/Address Resolution Service (Recursive or Caching Resolver) NA
SC-22 Architecture and Provisioning for Name/Address Resolution Service SC-22-A
SC-23 Session Authenticity SC-23-A, SC-23-1, SC-23-2, SC-23-3, SC-23-4
SC-24 Fail in Known State SC-24-A
SC-25 Thin Nodes NA
SC-26 Honeypots NA
SC-27 Operating System-Independent Applications NA
SC-28 Protection of Information at Rest SC-28-A
SC-29 Heterogeneity NA
SC-30 Virtualization Techniques NA
SC-32 Information System Partitioning NA
SC-33 Transmission Preparation Integrity NA
SC-34 Non-Modifiable Executable Programs NA
SC-100 Source Authentication NA
SC-101 Unclassified Telecommunications Systems in Secure Facilities NA
SI-2 Flaw Remediation NA
SI-3 Malicious Code Protection SI-3-A, SI-3-C, SI-3-1, SI-3-2, SI-3-3, SI-3-4
SI-4 Information System Monitoring SI-4-A, SI-4-C, SI-4-5, SI-4-6, SI-4-7, SI-4-8, SI-4-10, SI-4-11
SI-6 Security Functionality Verification NA
SI-7 Software and Information Integrity NA
SI-8 Spam Protection SI-8-A, SI-8-1, SI-8-2
SI-9 Information Input Restrictions NA
SI-10 Information Input Validation SI-10-A
SI-11 Error Handling NA

Table 6 - PA/L/L Procedural-Related Control Elements

Security Control Type Security Control Number
AC-1 Access Control Policy and Procedures AC-1-A, AC-1-B
AC-2 Account Management AC-2-A, AC-2-B, AC-2-C, AC-2-D, AC-2-E, AC-2-F, AC-2-G, AC-2-H, AC-2-I , AC-2-J
AC-4 Information Flow Enforcement NA
AC-5 Separation of Duties AC-5-A, AC-5-B
AC-6 Least Privilege AC-6-A, AC-6-1, AC-6-2, AC-6-5
AC-14 Permitted Actions Without Identification or Authentication AC-14-A, AC-14-B, AC-14-1
AC-17 Remote Access AC-17-A, AC-17-B, AC-17-AA, AC-17-4, AC-17-6
AC-18 Wireless Access AC-18-A, AC-18-3
AC-19 Access Control for Mobile Devices AC-19-A, AC-19-F, AC-19-G, AC-19-1, AC-19-2, AC-19-3
AC-20 Use of External Information Systems AC-20-A, AC-20-B
AC-21 User-Based Collaboration and Information Sharing AC-21-A, AC-21-100
AC-22 Publicly Accessible Content AC-22-A, AC-22-B, AC-22-C, AC-22-D, AC-22-E
AU-1 Audit and Accountability Policy and Procedures AU-1-A, AU-1-B
AU-2 Auditable Events AU-2-A, AU-2-B, AU-2-C, AU-2-D, AU-2-3, AU-2-4
AU-6 Audit Review, Analysis, and Reporting AU-6-A, AU-6-B, AU-6-1
AU-11 Audit Record Retention AU-11-A
CM-1 Configuration Management Policy and Procedures CM-1-A, CM-1-B
CM-5 Access Restrictions for Change CM-5-2, CM-5-5
CM-6 Configuration Settings CM-6-A, CM-6-C, CM-6-D, CM-6-4,
CM-7 Least Functionality CM-7-1, CM-7-3
CM-8 Information System Component Inventory CM-8-A, CM-8-B, CM-8-C, CM-8-D, CM-8-E, CM-8-1, CM-8-4, CM-8-5
CP-1 Contingency Management Policy and Procedures CP-1-A, CP-1-B, CP-1-AA
CP-9 Information System Backup CP-9-D, CP-9-1
CP-10 Information System Recovery and Reconstitution CP-10-A
IA-1 Identification and Authentication Policy and Procedures IA-1-A, IA-1-B
IA-3 Device Identification and Authentication IA-3-3
IA-4 Identifier Management IA-4-A, IA-4-B, IA-4-C, IA-4-D, IA-4-E, IA-4-2, IA-4-3, IA-4-4
IA-5 Authenticator Management IA-5-A, IA-5-B, IA-5-C, IA-5-D, IA-5-E, IA-5-F, IA-5-G, IA-5-H, IA-5-I, IA-5-3, IA-5-6, IA-5-7, IA-5-8
MA-1 System Maintenance Policy and Procedures MA-1-A, MA-1-B
MA-4 Non-Local Maintenance MA-4-A, MA-4-B, MA-4-D
MP-4 Media Storage NA
SC-1 System and Communication Protection Policy and Procedures SC-1-A, SC-1-B
SC-7 Boundary Protection NA
SC-12 Cryptographic Key Establishment and Management SC-12-1
SC-15 Collaborative Computing Devices SC-15-3
SC-17 Public Key Infrastructure Certificates SC-17-A
SC-18 Mobile Code SC-18-A, SC-18-B, SC-18-2
SC-19 Voice Over Internet Protocol SC-19-A, SC-19-B
SC-31 Covert Channel Analysis NA
SC-34 Non-Modifiable Executable Programs NA
SI-1 System and Information Integrity Policy and Procedures SI-1-A, SI-1-B
SI-2 Flaw Remediation SI-2-A, SI-2-B, SI-2-C
SI-3 Malicious Code Protection SI-3-B, SI-3-D, SI-3-5, SI-3-6
SI-4 Information System Monitoring SI-4-B, SI-4-D, SI-4-E, SI-4-9
SI-6 Security Functionality Verification NA
SI-7 Software and Information Integrity NA
SI-8 Spam Protection SI-8-B
SI-13 Predictable Failure Prevention NA

2.3 Example Protected B/Medium Integrity/Medium Availability

This section uses the Protected B/Medium Integrity/Medium Availability security control profile defined within the ITSG-33 (Annex 4 - Profile 1) as the approved set of security controls within the technology-related control elements selection process defined in Section 2.1 Technology-Related Control Element Selection. The results of the process are provided.

  • Step 1:  Table 1 is used to identify which security controls within the Protected B/Medium Integrity/Medium Availability security control profile are operating environment and which are information system security controls. The results are listed in Table 7 - PB/M/M Operating Environment and Information System Security Controls (Table 7).
  • Step 2:  Table 2 and Table 3 are used to identify the technology-related control elements and procedural-related control elements from the information system security controls identified in Table 7. The results are listed in Table 8 - PB/M/M Technology-Related Control Elements and Table 9 - PB/M/M Procedural-Related Control Elements respectively.

Table 7 - PB/M/M Operating Environment and Information System Security Controls

Security Control Type Security Control Number
Operating Environment AT-1, AT-2, AT-3, AT-4, CA-1, CA-2, CA-3, CA-5, CA-6, CA-7, CM-2, CM-3, CM-4, CM-9, CP-2, CP-3, IR-1, IR-2, IR-4, IR-6, IR-7, IR-8, MA-2, MA-5, MP-2, MP-3, PE-1, PE-2, PE-3, PE-6, PE-7, PE-8, PE-10, PE-11, PE-12, PE-13, PE-14, PE-15, PE-16, PE-18, PL-1, PL-2, PL-4, PL-5, PL-6, PS-1, PS-2, PS-3, PS-4, PS-5, PS-6, PS-7, PS-8, RA-1, RA-2, RA-3, RA-5, SA-1, SA-2, SA-3, SA-4, SA-5, SA-6, SA-7, SA-8, SA-9, SA-12, SI-5, SI-12
Information System AC-1, AC-2, AC-3, AC-4, AC-5, AC-6, AC-7, AC-8, AC-9. AC-11, AC-14, AC-16, AC-17, AC-18, AC-19, AC-20, AC-21, AC-22, AU-1, AU-2, AU-3, AU-4, AU-6, AU-8, AU-9, AU-11, AU-12, CM-1, CM-5, CM-6, CM-7, CM-8, CP-1, CP-9, CP-10, IA-1, IA-2, IA-3, IA-4, IA-5, IA-6, IA-7, IA-8, MA-1, MA-4, MP-1, MP-6, SC-1, SC-2, SC-7, SC-10, SC-12, SC-13, SC-14, SC-15, SC-17, SC-18, SC-19, SC-22, SC-23, SC-24, SC-28, SI-1, SI-2, SI-3, SI-4, SI-8, SI-10

Table 8 - PB/M/M Technology-Related Control Elements

Security Control Type Security Control Number
AC-2 Account Management AC-2-1, AC-2-2, AC-2-3, AC-2-4, AC-2-5, AC-2-7
AC-3 Access Enforcement AC-3-A, AC-3-4
AC-4 Information Flow Enforcement AC-4-A
AC-5 Separation of Duties AC-5-C
AC-6 Least Privilege NA
AC-7 Unsuccessful Login Attempts AC-7-A, AC-7-B
AC-8 System Use Notification AC-8-A, AC-8-B, AC-8-C
AC-9 Previous Logon (Access) Notification AC-9-A, AC-9-1, AC-9-2, AC-9-3
AC-10 Concurrent Session Control NA
AC-11 Session Lock AC-11-A, AC-11-B, AC-11-1
AC-16 Security Attributes AC-16-A, AC-16-2, AC-16-4, AC-16-5
AC-17 Remote Access AC-17-C, AC-17-D, AC-17-E, AC-17-1, AC-17-2, AC-17-3, AC-17-5, C-17-7, AC-17-8, AC-17-100
AC-18 Wireless Access AC-18-B, AC-18-C, AC-18-D, AC-18-1, AC-18-2, AC-18-4
AC-19 Access Control for Mobile Devices AC-19-B, AC-19-C, AC-19-D, AC-19-E
AC-21 User-Based Collaboration and Information Sharing AC-21-B
AU-3 Content of Audit Records AU-3-A, AU-3-1
AU-4 Audit Storage Capacity AU-4-A
AU-5 Response to Audit Processing Failures AU-5-A, AU-5-B, AU-5-1
AU-6 Audit Review, Analysis, and Reporting AU-6-3, AU-6-4
AU-7 Audit Reduction and Report Generation AU-7-A, AU-7-1
AU-8 Time Stamps AU-8-A, AU-8-1
AU-9 Protection of Audit Information AU-9-A, AU-9-2, AU-9-4
AU-10 Non-Repudiation NA
AU-12 Audit Generation AU-12-A, AU-12-B, AU-12-C, AU-12-1, AU-12-2
AU-14 Session Audit NA
CM-5 Access Restrictions for Change CM-5-A, CM-5-1, CM-5-6, CM-5-7
CM-6 Configuration Settings CM-6-B, CM-6-1, CM-6-2, CM-6-3
CM-7 Least Functionality CM-7-A, CM-7-2
CM-8 Information System Component Inventory CM-8-2, CM-8-3
CP-9 Information System Backup CP-9-A, CP-9-B, CP-9-C
CP-10 Information System Recovery and Reconstitution CP-10-2
IA-2 Identification and Authentication (Organizational Users) IA-2-A, IA-2-8, IA-2-9, IA-2-100
IA-3 Device Identification and Authentication IA-3-A, IA-3-1
IA-4 Identifier Management NA
IA-5 Authenticator Management IA-5-1, IA-5-2
IA-6 Authenticator Feedback IA-6-A
IA-7 Cryptographic Module Authentication IA-7-A
IA-8 Identification and Authentication (Non-Organizational Users) IA-8-A
MA-4 Non-Local Maintenance MA-4-C, MA-4-4, MA-4-6
SC-2 Application Partitioning SC-2-A, SC-2-1
SC-3 Security Function Isolation NA
SC-4 Information in Shared Resources NA
SC-5 Denial of Service Protection SC-5-A, SC-5-2
SC-6 Resource Priority NA
SC-7 Boundary Protection SC-7-A, SC-7-B, SC-7-1, SC-7-2, SC-7-3, SC-7-4, SC-7-5, SC-7-6, SC-7-7, SC-7-8, SC-7-9, SC-7-11, SC-7-12, SC-7-13, SC-7-18
SC-8 Transmission Integrity SC-8-A, SC-8-1
SC-9 Transmission Confidentiality SC-9-A, SC-9-1
SC-10 Network Disconnect SC-10-A
SC-11 Trusted Path NA
SC-12 Cryptographic Key Establishment and Management SC-12-A
SC-13 Use of Cryptography SC-13-A, SC-13-4
SC-14 Public Access Protections SC-14-A
SC-15 Collaborative Computing Devices SC-15-A, SC-15-B, SC-15-2
SC-16 Transmission of Security Attributes NA
SC-18 Mobile Code SC-18-C, SC-18-1, SC-18-3
SC-20 Secure Name/Address Resolution Service (Authoritative Source) NA
SC-21 Secure Name/Address Resolution Service (Recursive or Caching Resolver) NA
SC-22 Architecture and Provisioning for Name/Address Resolution Service SC-22-A
SC-23 Session Authenticity SC-23-A, SC-23-1, SC-23-2, SC-23-3, SC-23-4
SC-24 Fail in Known State SC-24-A
SC-25 Thin Nodes NA
SC-26 Honeypots NA
SC-27 Operating System-Independent Applications NA
SC-28 Protection of Information at Rest SC-28-A
SC-29 Heterogeneity SC-29-A
SC-30 Virtualization Techniques NA
SC-32 Information System Partitioning NA
SC-33 Transmission Preparation Integrity NA
SC-34 Non-Modifiable Executable Programs NA
SC-100 Source Authentication NA
SC-101 Unclassified Telecommunications Systems in Secure Facilities NA
SI-2 Flaw Remediation NA
SI-3 Malicious Code Protection SI-3-A, SI-3-C, SI-3-1, SI-3-2, SI-3-3, SI-3-4
SI-4 Information System Monitoring SI-4-A, SI-4-C, SI-4-1, SI-4-2, SI-4-3, SI-4-4, SI-4-5, SI-4-6, SI-4-7, SI-4-8, SI-4-10, SI-4-11, SI-4-12, SI-4-13, SI-4-14, SI-4-15
SI-6 Security Functionality Verification NA
SI-7 Software and Information Integrity SI-7-A, SI-7-2, SI-7-3
SI-8 Spam Protection SI-8-A, SI-8-1, SI-8-2
SI-9 Information Input Restrictions SI-9-A
SI-10 Information Input Validation SI-10-A
SI-11 Error Handling SI-11-A, SI-11-B, SI-11-C

Table 9 - PB/M/M Procedural-Related Control Elements

Security Control Type Security Control Number
AC-1 Access Control Policy and Procedures AC-1-A, AC-1-B
AC-2 Account Management AC-2-A, AC-2-B, AC-2-C, AC-2-D, AC-2-E, AC-2-F, AC-2-G, AC-2-H, AC-2-I , AC-2-J
AC-4 Information Flow Enforcement NA
AC-5 Separation of Duties AC-5-A, AC-5-B
AC-6 Least Privilege AC-6-A, AC-6-1, AC-6-2, AC-6-5
AC-14 Permitted Actions Without Identification or Authentication AC-14-A, AC-14-B, AC-14-1
AC-17 Remote Access AC-17-A, AC-17-B, AC-17-AA, AC-17-4, AC-17-6
AC-18 Wireless Access AC-18-A, AC-18-3
AC-19 Access Control for Mobile Devices AC-19-A, AC-19-F, AC-19-G, AC-19-1, AC-19-2, AC-19-3, AC-19-100
AC-20 Use of External Information Systems AC-20-A, AC-20-B, AC-20-1, AC-20-2
AC-21 User-Based Collaboration and Information Sharing AC-21-A, AC-21-100
AC-22 Publicly Accessible Content AC-22-A, AC-22-B, AC-22-C, AC-22-D, AC-22-E
AU-1 Audit and Accountability Policy and Procedures AU-1-A, AU-1-B
AU-2 Auditable Events AU-2-A, AU-2-B, AU-2-C, AU-2-D, AU-2-3, AU-2-4
AU-6 Audit Review, Analysis, and Reporting AU-6-A, AU-6-B, AU-6-1, AU-6-7
AU-11 Audit Record Retention AU-11-A
CM-1 Configuration Management Policy and Procedures CM-1-A, CM-1-B
CM-5 Access Restrictions for Change CM-5-2, CM-5-5
CM-6 Configuration Settings CM-6-A, CM-6-C, CM-6-D, CM-6-4
CM-7 Least Functionality CM-7-1, CM-7-3
CM-8 Information System Component Inventory CM-8-A, CM-8-B, CM-8-C, CM-8-D, CM-8-E, CM-8-1, CM-8-4, CM-8-5, CM-8-6
CP-1 Contingency Management Policy and Procedures CP-1-A, CP-1-B, CP-1-AA
CP-9 Information System Backup CP-9-D, CP-9-1, CP-9-2, CP-9-3, CP-9-5
CP-10 Information System Recovery and Reconstitution CP-10-A, CP-10-4, CP-10-6
IA-1 Identification and Authentication Policy and Procedures IA-1-A, IA-1-B
IA-3 Device Identification and Authentication IA-3-3
IA-4 Identifier Management IA-4-A, IA-4-B, IA-4-C, IA-4-D, IA-4-E, IA-4-1, IA-4-2, IA-4-3, IA-4-4
IA-5 Authenticator Management IA-5-A, IA-5-B, IA-5-C, IA-5-D, IA-5-E, IA-5-F, IA-5-G, IA-5-H, IA-5-I, IA-5-3, IA-5-6, IA-5-7, IA-5-8
MA-1 System Maintenance Policy and Procedures MA-1-A, MA-1-B
MA-4 Non-Local Maintenance MA-4-A, MA-4-B, MA-4-D, MA-4-1, MA-4-2, MA-4-3, MA-4-5
MP-4 Media Storage MP-4-A, MP-4-B, MP-4-1
SC-1 System and Communication Protection Policy and Procedures SC-1-A, SC-1-B
SC-7 Boundary Protection NA
SC-12 Cryptographic Key Establishment and Management SC-12-1
SC-15 Collaborative Computing Devices SC-15-3
SC-17 Public Key Infrastructure Certificates SC-17-A
SC-18 Mobile Code SC-18-A, SC-18-B, SC-18-2
SC-19 Voice Over Internet Protocol SC-19-A, SC-19-B
SC-31 Covert Channel Analysis NA
SC-34 Non-Modifiable Executable Programs NA
SI-1 System and Information Integrity Policy and Procedures SI-1-A, SI-1-B
SI-2 Flaw Remediation SI-2-A, SI-2-B, SI-2-C
SI-3 Malicious Code Protection SI-3-B, SI-3-D, SI-3-5, SI-3-6
SI-4 Information System Monitoring SI-4-B, SI-4-D, SI-4-E, SI-4-9
SI-6 Security Functionality Verification NA
SI-7 Software and Information Integrity SI-7-1, SI-7-4
SI-8 Spam Protection SI-8-B
SI-13 Predictable Failure Prevention NA

3 References

[Reference 1]
ITSG-33 IT Security Risk Management: A Lifecycle Approach - Overview; CSEC (Nov 2012)
[Reference 2]
ITSG-41 - Security Requirements for Wireless Local Area Networks; CSEC (March 2013)
[Reference 3]
ITSG-41 Annex 1 - Government Hot Spot High-Level Design Guidance; CSEC (March 2013)
[Reference 4]
ITSG-41 Annex 2 - Wireless User to Wired Network Connection High-Level Design Guidance; CSEC (March 2013)
[Reference 5]
ITSG-41 Annex 3 - Wired Network to Wired Network via Wireless Bridge High-Level Design Guidance; CSEC (March 2013)

Notes

Report a problem on this page

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Please select all that apply:

Thank you for your help!

You will not receive a reply. For enquiries, please contact us.

Date modified:
